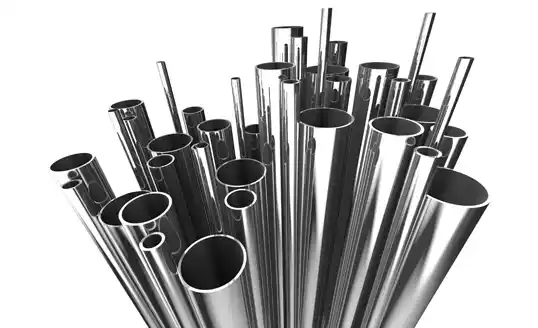

Steel Tubes for Structure Purpose
We are a leading manufacturer & exporter of wide range of steel tubes used for various structural purposes. These are galvanized & treated for higher functional life, to resist corrosion, etc. For decades, designers, builders and consumers seeking long-term structural performance in the harshest of outdoor applications have turned to zinc-coated steel pipes. Our steel pipes and tube resist the attack of wind, water and road salts.
Conforming to IS : 1161-1998 YST - 210, 240 Equivalent to BS : 1775/ 64
Technical Specification
| Nominal Bore | Outside Diameter | Class | Wall Thickness |
Weight | |
|---|---|---|---|---|---|
| mm | mm | mm | Kg/Mtr | Mtrs/Ton | |
| 15 | 21.3 | Light Medium Heavy |
2.0 2.6 3.2 |
0.947 1.21 1.44 |
1056 826 694 |
| 20 | 26.9 | Light Medium Heavy |
2.3 2.6 3.2 |
1.38 1.56 1.87 |
725 641 535 |
| 25 | 33.7 | Light Medium Heavy |
2.6 3.2 4.0 |
1.98 2.41 2.93 |
505 415 341 |
| 32 | 42.4 | Light Medium Heavy |
2.6 3.2 4.0 |
2.54 3.10 3.79 |
394 323 264 |
| 40 | 48.4 | Light Medium Heavy |
2.9 3.2 4.0 |
3.23 3.56 4.37 |
310 281 229 |
| 50 | 60.3 | Light Medium Heavy |
2.9 3.6 4.5 |
4.08 5.03 6.19 |
245 199 162 |
| 65 | 76.1 | Light Medium Heavy |
3.2 3.6 4.5 |
5.71 6.42 7.93 |
175 156 126 |
| 80 | 88.9 | Light Medium Heavy |
3.2 4.0 4.8 |
6.72 8.36 9.90 |
149 120 101 |
| 90 | 101.6 | Light Medium Heavy |
3.6 4.0 4.8 |
8.70 9.63 11.5 |
115 104 87 |
| 100 | 114.3 | Light Medium Heavy |
3.6 4.5 5.4 |
9.75 12.2 14.5 |
103 82 69 |
| 110 | 127.0 | Light Medium Heavy |
4.5 4.8 5.4 |
13.6 14.5 16.2 |
74 69 62 |
| 125 | 139.7 | Light Medium Heavy |
4.5 4.8 5.4 |
15.0 15.9 17.9 |
67 63 56 |
| 135 | 152.4 | Light Medium Heavy |
4.5 4.8 5.4 |
16.4 17.5 19.6 |
61 57 51 |
| 150 | 165.1 | Light Medium Heavy |
4.5 4.8 5.4 |
17.8 18.9 21.3 |
56 53 47 |
| 150 | 168.3 | Light Medium Heavy1 Heavy2 |
4.5 4.8 5.4 6.3 |
18.2 19.4 21.7 25.2 |
55 52 46 40 |
| 175 | 193.7 | Light Medium Heavy |
4.8 5.4 5.9 |
22.4 25.1 27.3 |
45 40 37 |
| 200 | 219.1 | Light Medium Heavy |
4.8 5.6 5.9 |
25.4 29.5 31.0 |
39 34 32 |
| 250 | 273.0 | Heavy | 5.9 | 38.9 | 26 |
| 300 | 323.9 | Heavy | 6.3 | 49.3 | 20 |
| 350 | 355.6 | Heavy | 8.0 | 68.6 | 15 |
Note : Elongation percent for tubes upto & including 25mm nominal bore for all grades shall be 12% minimum
Tolerance
| O.D. : | Upto & Including 48.3mm | +0.4 mm -0.8 mm |
|---|---|---|
| Over 48.3 mm | +- 1% | |
| Wall thickness : | + Not Limited - 10% | |
| Weight : | Single Tube Light | + 10% -8% |
| Single Tube Medium Heavy | ±10% |
Tensile Properties
| Grade | Tensile Strength (Min.) MPa | Yield Stress (Min.) MPa |
|---|---|---|
| Yst210 | 330 | 210 |
| Yst240 | 410 | 240 |
| Yst310 | 450 | 310 |
