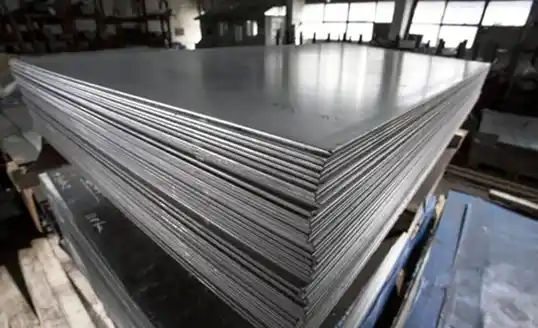

MS Plates
We are engaged in dealing a wide range of boiler quality plates, and Mild Steel Plates. Our range comprises Ship Building Steel Plates, Steel Plates for Oil & Gas lines. These are highly beneficial for engineer, railways, window grills, and collapsible gate manufacturers. These are sourced from leading manufacturers who make use of quality raw material and advanced technology in the production process. Our range is available in various grades and standards to ensure the requirements of clients.
The grade, elements and parameters of a steel plate are also important in how it is used. M.S Plates can be molded as per client's specifications and is available at industry leading prices. Plate is available in thicknesses from 5mm to 150mm and greater, up to 3200mm wide and 18.3 meters long. Widely known for superior finish and durability, these are available at competitive rates.
ISI-2062-2006 GRADE E 250 A and B
Section Weight
| mm | Wt. Per Sq.meter/Kg. |
mm | Wt.per Sq.meter/kg |
|---|---|---|---|
| 5 | 39.25 | 25 | 196.30 |
| 6 | 47.10 | 28 | 219.80 |
| 8 | 62.80 | 32 | 251.20 |
| 10 | 78.50 | 36 | 282.60 |
| 12 | 94.20 | 40 | 314.00 |
| 14 | 109.90 | 45 | 353.20 |
| 16 | 125.60 | 50 | 392.50 |
| 18 | 141.30 | 56 | 439.60 |
| 20 | 157.00 | 63 | 494.50 |
| 22 | 172.70 | 71 | 557.40 |
